Position: Home  > All Categories> Integrated Circuits (ICs) > CEP-1152

CEP-1152

BUZZER PIEZO 5KHZ EXT DRIVE

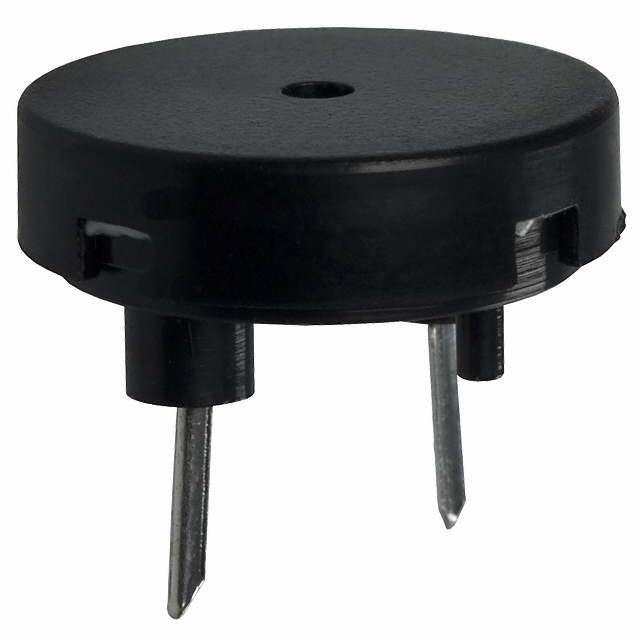

product image

CEP-1152 Picture
See larger image
SeekIC No. : 002844763 Detail

CEP-1152: BUZZER PIEZO 5KHZ EXT DRIVE

CEP-1152 Data Sheet

floor Price/Ceiling Price

US $ .45~1.12 / Piece | Get Latest Price
Part Number:
CEP-1152
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $1.12
  • $.93
  • $.69
  • $.55
  • $.5
  • $.45
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CEP Manufacturer: CUI Inc
Driver Circuitry: Transducer, Externally Driven Technology: Piezo
Input Type: peak-peak Signal Voltage - Rated: 10Vp-p
Voltage Range: 30V (Max) Frequency: 5kHz
Operating Mode: Continuous Sound Pressure Level: 84dB @ 10V, 10cm
Dimensions : 6.5 mm x 9 mm x 1.8 mm Current - Supply: 9mA
Washable: No Mounting Type: Through Hole
Termination: PC Pins Size / Dimension: Circular - 16.50mm Dia x 7.50mm H

Description

Driver Circuitry: Transducer, Externally Driven
Technology: Piezo
Voltage Range: 30V (Max)
Operating Mode: Continuous
Washable: No
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Bulk
Manufacturer: CUI Inc
Input Type: peak-peak Signal
Voltage - Rated: 10Vp-p
Series: CEP
Sound Pressure Level: 84dB @ 10V, 10cm
Current - Supply: 9mA
Frequency: 5kHz
Size / Dimension: Circular - 16.50mm Dia x 7.50mm H


Specifications

  • recommended circuits: click here
  • operating voltage: 30Vp-p
  • current consumption: 9mA
  • sound pressure level: 84dB
  • electrostatic capacity: 11,000 ±30%
  • operating temperature: -30 to +85°C
  • storage temperature: -40 to +95°C
  • diameter: 16.5 mm
  • depth: 7.0 mm
  • weight: 1.0 grams
  • termination: PC pins



    • Parameters:

    Technical/Catalog InformationCEP-1152
    VendorCUI Inc
    CategoryAudio Products
    Frequency*
    Capacitance @ Frequency*
    Voltage - Input, Max*
    Impedance100 Primary, 200CT Secondary
    Packagingnew value
    Size*
    Type*
    #3Bea
    -3db Bandwidth100kHz
    4th Output*
    2nd Harmonic, Typ (dBc)*
    Number of Bandidos*
    Actuator Length*
    Adhesive*
    B Constant*
    Cable Exit*
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CEP 1152
    CEP1152
    102 1135 ND
    1021135ND
    102-1135
