Position: Home  > All Categories> Integrated Circuits (ICs) > CEP-1136

CEP-1136

BUZZER PIEZO 2.8KHZ SELF DRIVE

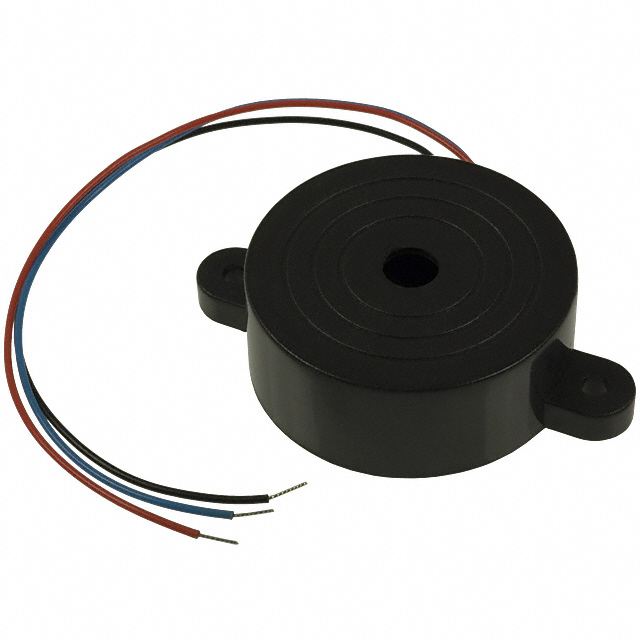

product image

CEP-1136 Picture
See larger image
SeekIC No. : 002844761 Detail

CEP-1136: BUZZER PIEZO 2.8KHZ SELF DRIVE

CEP-1136 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CEP-1136
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CEP Manufacturer: CUI Inc
Driver Circuitry: Transducer, Externally Driven Technology: Piezo (with Feedback)
Input Type: DC Voltage - Rated: 12VDC
Voltage Range: 3 ~ 28V Frequency: 2.8kHz
Operating Mode: Continuous Sound Pressure Level: 85dB @ 12V, 30cm
Dimensions : 6.5 mm x 9 mm x 1.8 mm Current - Supply: 7mA
Washable: No Mounting Type: Chassis Mount
Termination: Wire Leads Size / Dimension: Circular - 41.80mm Dia x 16.50mm H

Description

Driver Circuitry: Transducer, Externally Driven
Operating Mode: Continuous
Washable: No
Packaging: Bulk
Manufacturer: CUI Inc
Termination: Wire Leads
Input Type: DC
Voltage - Rated: 12VDC
Frequency: 2.8kHz
Mounting Type: Chassis Mount
Series: CEP
Current - Supply: 7mA
Technology: Piezo (with Feedback)
Voltage Range: 3 ~ 28V
Sound Pressure Level: 85dB @ 12V, 30cm
Size / Dimension: Circular - 41.80mm Dia x 16.50mm H


Specifications

  • recommended circuits: click here
  • resonant frequency: 2.8± 0.5 kHz
  • operating voltage: 3-28 Vdc
  • current consumption: 7mA
  • sound pressure level: 85dB
  • rated voltage: 12 Vdc
  • operating temperature: -30 to +85°C
  • storage temperature: -40 to +95°C
  • diameter: 41.8 mm
  • depth: 16.0 mm
  • weight: 12.6 grams
  • termination: wire leads
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">
