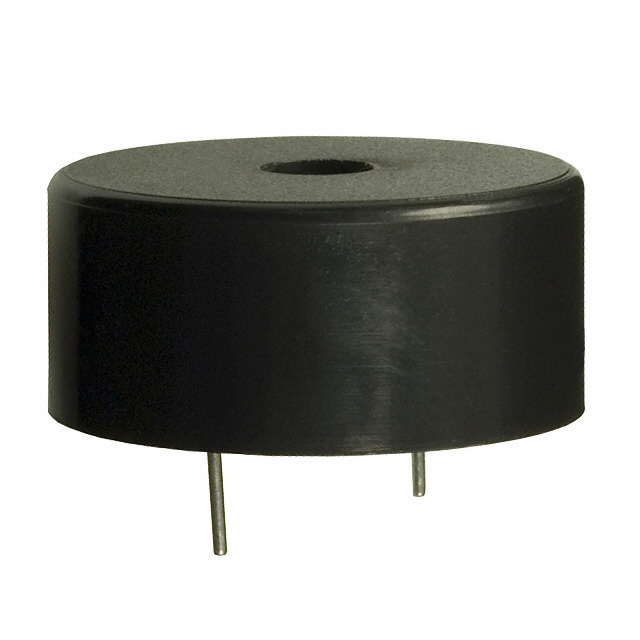

BUZZER PIEZO 2KHZ 30MM EXT DRIVE
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Series: | CEP | Manufacturer: | CUI Inc | ||
Driver Circuitry: | Transducer, Externally Driven | Technology: | Piezo | ||
Input Type: | peak-peak Signal | Voltage - Rated: | 10Vp-p | ||
Voltage Range: | 30V (Max) | Frequency: | 2kHz | ||
Operating Mode: | Continuous | Dimensions : | 6.5 mm x 9 mm x 1.8 mm | ||
Sound Pressure Level: | 93dB @ 10V, 10cm | Current - Supply: | 11mA | ||
Washable: | No | Mounting Type: | Through Hole | ||
Termination: | PC Pins | Size / Dimension: | Circular - 30.00mm Dia x 14.00mm H |
Technical/Catalog Information | CEP-1114 |
Vendor | CUI Inc |
Category | Audio Products |
Type | Piezo Transducer, External Drive |
Sound Pressure Level | 93dB |
Mounting Type | Through Hole |
Capacitance @ Frequency | 45000pF @ 1kHz |
Frequency | 2kHz |
Packaging | Bulk |
Operating Mode | Continuous |
Voltage Range | 30Vp-p (max) |
Voltage - Rated | 10Vp-p |
Current Rating | 11mA |
Size / Dimension | Circular - 30mm Dia x 13.5mm H |
Termination | Solder Pins/Posts |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | CEP 1114 CEP1114 102 1140 ND 1021140ND 102-1140 |
