CAT28F102

 Fast Read Access Time: 45/55/70/90 ns
  Low Power CMOS Dissipation:
        Active: 30 mA max (CMOS/TTL levels)
        Standby: 1 mA max (TTL levels)
        Standby: 100 mA max (CMOS levels)
  High Speed Programming:
        10 ms per byte
        1 Sec Typ Chip Program
  0.5 Seconds Typical Chip-Erase
 12.0V ± 5% Programming and Erase Voltage
 Commercial,Industrial and Automotive Temperature Ranges
  64K x 16 Word Organization
  Stop Timer for Program/Erase
 On-Chip Address and Data Latches
  JEDEC Standard Pinouts:
        40-pin DIP

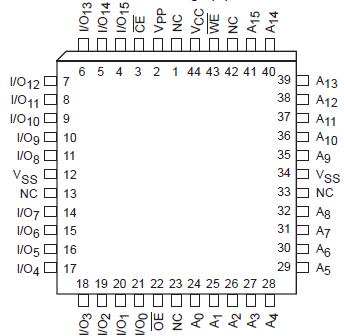

        44-pin PLCC
        40-pin TSOP
  100,000 Program/Erase Cycles
  10 Year Data Retention
  Electronic Signature

Temperature Under Bias ............................................... .... 55°C to +95°C
Storage Temperature ...................................................... 65°C to +150°C
Voltage on Any Pin with Respect to Ground⁽¹⁾ ............ 0.6V to +VCC + 2.0V
Voltage on Pin A₉ with Respect to Ground(¹⁾ ....................... 2.0V to +13.5V
VPP with Respect to Ground during Program/Erase⁽¹⁾ ......... 0.6V to +14.0V
VCC with Respect to Ground⁽¹⁾ ............................................. .2.0V to +7.0V
Package Power Dissipation Capability (T_A = 25°C) ............................... 1.0 W
Lead Soldering Temperature (10 secs) ................................................ 300°C
Output Short Circuit Current⁽²⁾ ........................................................... 100 mA

The CAT28F102 is a high speed 64K x 16-bit electrically erasable and reprogrammable Flash memory ideally suited for applications requiring in-system or after-sale code updates. Electrical erasure of the full memory contents is achieved typically within 0.5 second.

CAT28F102 is pin and Read timing compatible with standard EPROM and E²PROM devices. Programming and Erase are performed through an operation and verify algorithm. The instructions are input via the I/O bus, using a two write cycle scheme. Address and Data are latched to free the I/O bus and address bus during the write operation.

The CAT28F102 is manufactured using Catalyst's advanced CMOS floating gate technology. It is designed to endure 100,000 program/erase cycles and has a data retention of 10 years. The device is available in JEDEC approved 40-pin DIP, 44-pin PLCC, or 40-pin TSOP packages.
