CAT28C010

FEATURES
Fast Read Access Times: 120 ns
Single 5V ± 10% Supply
Low Power CMOS Dissipation:
          Active: 40 mA Max.
          Standby: 200 mA Max.
Simple Write Operation:
          On-Chip Address and Data Latches
          Self-Timed Write Cycle with Auto-Clear
Fast Write Cycle Time:
          5ms Max
CMOS and TTL Compatible I/O
Automatic Page Write Operation:
         1 to 128 Bytes in 5ms
          Page Load Timer
End of Write Detection:
         Toggle Bit
         DATA Polling
Hardware and Software Write Protection
100,000 Program/Erase Cycles
100 Year Data Retention
Commercial, Industrial and Automotive Temperature Ranges

Temperature Under Bias ................................................ 55°C to +125°C
Storage Temperature ..................................................... 65°C to +150°C
Voltage on Any Pin with Respect to Ground(2) .......... 2.0V to +VCC + 2.0V
VCC with Respect to Ground ................................................ 2.0V to +7.0V
Capability (Ta = 25°C).......................................................................... 1.0W
Lead Soldering Temperature (10 secs) .............................................. 300°C
Output Short Circuit Current(3) ..........................................................100 mA

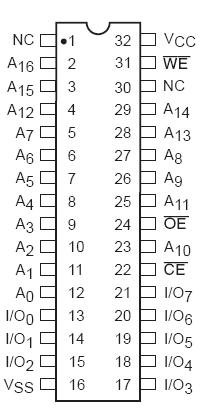

The CAT28C010 is a fast,low power, 5V-only CMOS parallel E²PROM organized as 128K x 8-bits. It requires a simple interface for in-system programming. On-chip address and data latches, self-timed write cycle with auto-clear and VCC power up/down write protection eliminate additional timing and protection hardware. DATA Polling and Toggle status bits signal the start and end of the self-timed write cycle. Additionally, the CAT28C010 features hardware and software write protection.

The CAT28C010 is manufactured using Catalyst's advanced CMOS floating gate technology. It is designed to endure 100,000 program/erase cycles and has a data retention of 100 years. The device is available in JEDEC approved 32-pin DIP, PLCC, 32-pin TSOP and 40-pin TSOP packages.
