CAT25C32

Features:

 10 MHz SPI Compatible
1.8 to 6.0 Volt Operation
Hardware and Software Protection
Zero Standby Current
Low Power CMOS Technology
SPI Modes (0,0 &1,1)
Commercial, Industrial and Automotive
    Temperature Ranges
1,000,000 Program/Erase Cycles
100 Year Data Retention
Self-Timed Write Cycle
8-Pin DIP/SOIC, 16-Pin SOIC, 14-Pin TSSOPand
    20-Pin TSSOP
64-Byte Page Write Buffer
Block Write Protection
   Protect 1/4, 1/2 or all of E2PROM Array

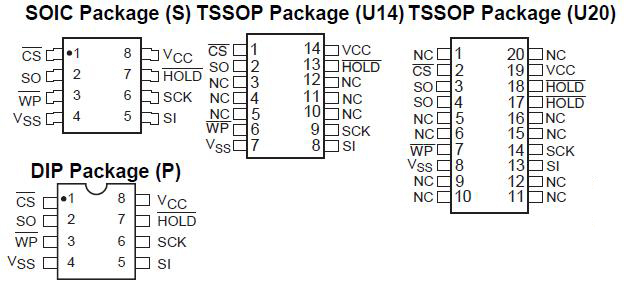

Pinout




Specifications

Temperature Under Bias ................. 55 to +125
Storage Temperature .......................65 to +150
Voltage on any Pin with
    Respect to V_SS¹) ..................2.0V to +V_CC +2.0V
V_CC with Respect to V_SS.....................2.0V to +7.0V
Package Power Dissipation
    Capability (Ta = 25)..................................... 1.0W
Lead Soldering Temperature (10 secs) ............. 300
Output Short Circuit Current⁽²⁾ .......................100 mA


Description

The CAT25C32/64 is a 32K/64K-Bit SPI Serial CMOS E²PROM internally organized as 4Kx8/8Kx8 bits. Catalyst's advanced CMOS Technology substantially reduces device power requirements. The CAT25C32/ 64 features a 64-byte page write buffer. The device operates via the SPI bus serial interface and is enabled though a Chip Select (CS). In addition to the Chip Select, the clock input (SCK), data in (SI) and data out (SO) are required to access the device. TheHOLD pin may be used to suspend any serial communication without resetting the serial sequence. The CAT25C32/64 is designed with software and hardware write protection features including Block write protection. The device is available in 8-pin DIP, 8-pin SOIC, 14-pin TSSOP and 20-pin TSSOP packages.
