Features:

10 MHz SPI compatible
1.8 to 6.0 volt operation
Hardware and software protection
Low power CMOS technology
SPI modes (0,0 & 1,1)*
Commercial, industrial, automotive and extended temperature ranges
1,000,000 program/erase cycles
100 year data retention
Self-timed write cycle
8-pin DIP/SOIC, 8/14-pin TSSOP and 8-pin MSOP
16/32-byte page write buffer
Write protection
Protect first page, last page, any 1/4 array or lower 1/2 array




Pinout

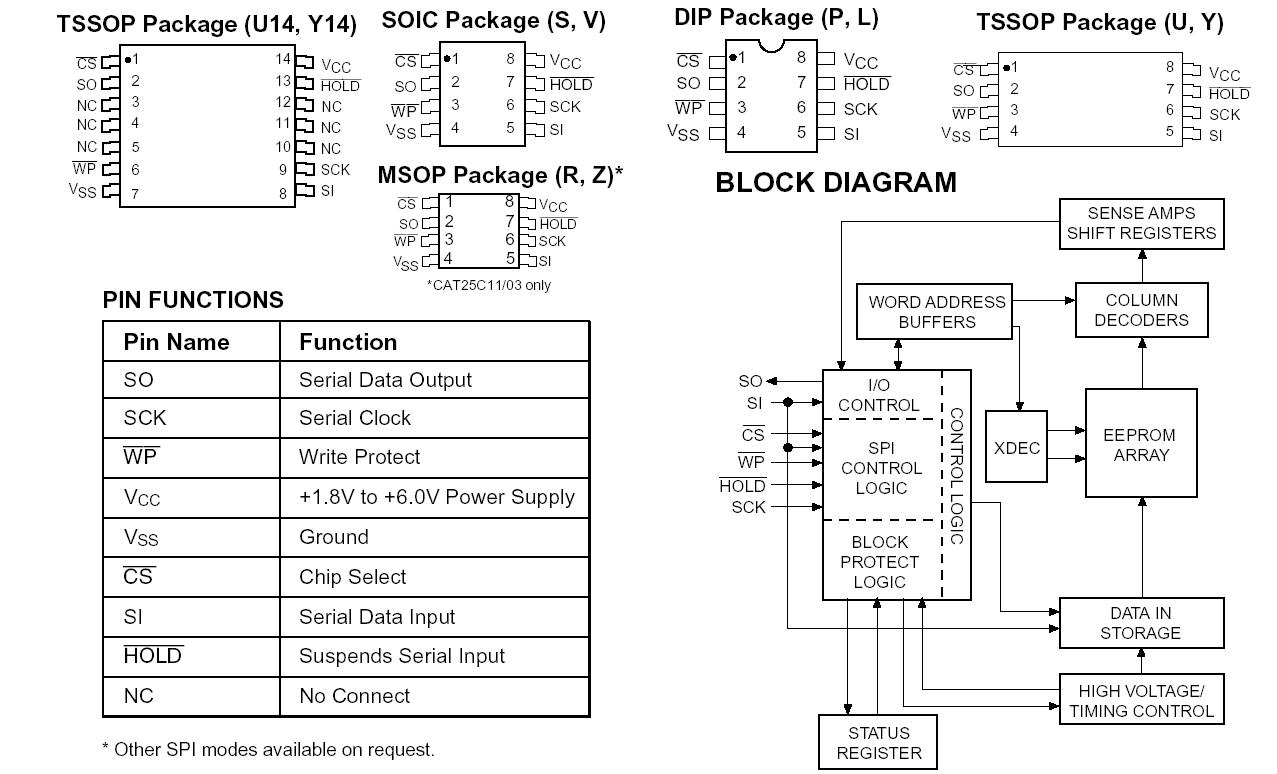

  Connection Diagram


Specifications

Temperature Under Bias ..................... 55°C to +125°C
Storage Temperature...........................65°C to +150°C
Voltage on any Pin with
Respect to VSS(1)     ..................... 2.0V to +VCC +2.0V
VCC with Respect to VSS ........................ 2.0V to +7.0V
Package Power Dissipation
Capability (Ta = 25°C) ........................................... 1.0W
Lead Soldering Temperature (10 secs) ................ 300°C
Output Short Circuit Current(2)     .......................100 mA



Description

The CAT25C11/03/05/09/17 is a 1K/2K/4K/8K/16K-Bit SPI Serial CMOS EEPROM internally organized as 128x8/256x8/512x8/1024x8/2048x8  bits. Catalyst's advanced CMOS Technology substantially reduces device power requirements. The CAT25C11/03/05 features a 16-byte page write buffer. The 25C09/17 features a 32-byte page write buffer.The device operates via the SPI bus serial interface and is enabled though a Chip Select (CS). In addition to the Chip Select, the clock input (SCK), data in (SI) and data out (SO) are required to access the device. The HOLD pin may be used to suspend any serial communication without resetting the serial sequence. The CAT25C11/03/05/09/17 is designed with software and hardware write protection features including Block Write protection. CAT25C05 is available in 8-pin DIP, 8-pin SOIC, 8/14-pin TSSOP and 8-pin MSOP packages.
