CAT24WC16

Features:

 400 KHZ I²C Bus Compatible*
1.8 to 6.0Volt Operation
Low Power CMOS Technology
Write Protect Feature
    - Entire Array Protected When WP at V_IH
Page Write Buffer
Self-Timed Write Cycle with Auto-Clear
1,000,000 Program/Erase Cycles
100 Year Data Retention
8-pin DIP, 8-pin SOIC or 8 pin TSSOP
Commercial, Industrial and Automotive
    Temperature Ranges

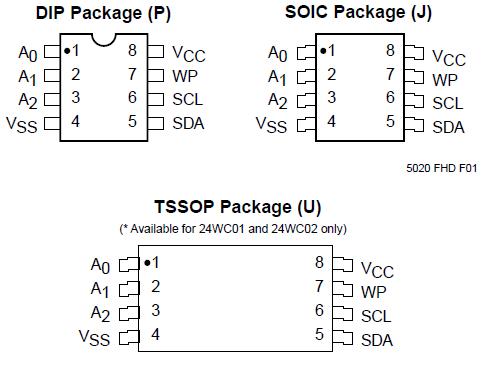

Pinout




Specifications

Temperature Under Bias .................55 to +125
Storage Temperature .....................65 to +150
Voltage on Any Pin with
     Respect to Ground⁽²⁾ ...........2.0 to +V_CC +2.0V
V_CCwith Respect to Ground ............. 2.0V to +7.0V
Package Power Dissipation
     Capability (Ta = 25)................................... 1.0W
Lead Soldering Temperature (10 secs) ............ 300
Output Short Circuit Current⁽²⁾ ..................... 100 mA

Description

The CAT24WC01/02/04/08/16 is a 1K/2K/4K/8K/16Kbit Serial CMOS E2PROM internally organized as 128/256/512/1024/2048 words of 8 bits each. Catalyst's advanced CMOS technology substantially reduces device power requirements. The the CAT24WC01/02/04/ 08/16 feature a 16-byte page write buffer. The device operates via the I²C bus serial interface, has a special write protection feature, and is available in 8-pin DIP, 8- pin SOIC or 8-pin TSSOP.
