CAT24C44

Features:

Single 5V Supply
Infinite E²PROM to RAM Recall
CMOS and TTL Compatible I/O
Low CMOS Power Consumption:
Active: 3 mA Max.
Standby: 30 µA Max.
Power Up/Down Protection
10 Year Data Retention
JEDEC Standard Pinouts:
8-pin DIP
8-pin SOIC
100,000 Program/Erase Cycles (E²PROM)
Auto Recall on Power-up
Commercial, Industrial and Automotive
Temperature Ranges

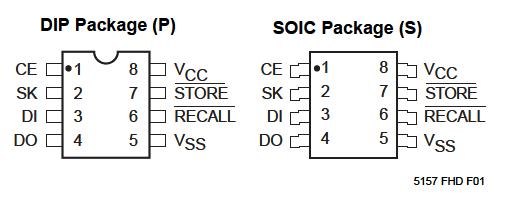

Pinout






Specifications

Temperature Under Bias .................55 to +125
Storage Temperature .....................65 to +150
Voltage on Any Pin with
Respect to Ground⁽²⁾ ...........2.0 to +V_CC +2.0V
V_CCwith Respect to Ground ............. 2.0V to +7.0V
Package Power Dissipation
Capability (Ta = 25)................................... 1.0W
Lead Soldering Temperature (10 secs) ............ 300
Output Short Circuit Current⁽³) ..................... 100 mA




Description

The CAT24C44 Serial NVRAM is a 256-bit nonvolatile memory organized as 16 words x 16 bits. The high speed Static RAM array is bit for bit backed up by a nonvolatile E²PROM array which allows for easy transfer of data from RAM array to E²PROM (STORE) and from E2PROM to RAM (RECALL). STORE operations are completed in 10ms max. and RECALL operations typically within 1.5µs. The CAT24C44 features unlimited RAM write operations either through external RAM writes or internal recalls from E²PROM. Internal false store protection circuitry prohibits STORE operations when V_CC is less than 3.5V (typical) ensuring E²PROM data integrity.

The CAT24C44 is manufactured using Catalyst's advanced CMOS floating gate technology. It is designed to endure 100,000 program/erase cycles (E2PROM) and has a data retention of 10 years. The device is available in JEDEC approved 8-pin plastic DIP and SOIC packages.
