CAT24C21RD4ETE13

Features:

 DDC1TM/DDC2TM interface compliant formonitor identification
  400 kHz I2C bus compatible*
  2.5 to 5.5 volt operation
  16-byte page write buffer
  Hardware write protect
  Low power CMOS technology
  1,000,000 program/erase cycles
  100 year data retention
  8-pin DIP, SOIC, TSSOP, MSOP or TDFNpackages
  Industrial temperature range

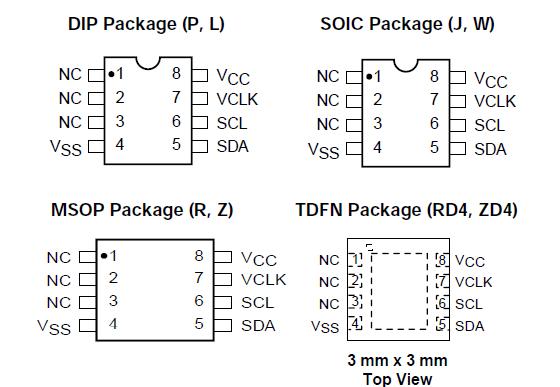

Pinout




Specifications

Temperature Under Bias ..................  -55°C to +125°C
Storage Temperature ........................ -65°C to +150°C
Voltage on Any Pin with
Respect to Ground(1) .................. -2.0 V to VCC + 2.0 V
VCC with Respect to Ground ..............   -2.0 V to +7.0 V
Package Power Dissipation
Capability (TA = 25°C) .............................. .......... 1.0 W
Lead Soldering Temperature (10 seconds) ........  300°C
Output Short Circuit Current(2) .......................   100 mA


Description

The CAT24C21 is a 1-kb Serial CMOS EEPROMinternally organized as 128 words of 8 bits each. Thedevice complies with the Video Electronics StandardAssociation's (VESA™), Display Data Channel (DDC™)standards for "Plug-and-Play" monitors. The "transmitonly"mode (DDC1™) is controlled by the VCLK clockinput and the "bi-directional" mode (DDC2™) is controlledby the SCL clock input, CAT24C21 with both modes sharing acommon SDA input/output (I/O). The transmit-only modeis a read-only mode, while the bi-directional mode is aread and write mode following the I2C protocol. In writemode the CAT24C21features a 16-byte page writebuffer. The device is available in 8-in DIP, SOIC, TSSOP,MSOP and TDFN packages.PIN
