CAT24C208

Features: · Supports Standard and Fast I2C protocol*· 2.5V to 5.5V operation· 16-byte page write buffer· Schmitt triggers and noise protection filters on I2C bus input· Low power CMOS technology· 1,000,000 program/erase cycles· 100 year data retention· Industrial temperature range· RoHS-c...

product image

CAT24C208 Picture
See larger image
SeekIC No. : 004310534 Detail

CAT24C208: Features: · Supports Standard and Fast I2C protocol*· 2.5V to 5.5V operation· 16-byte page write buffer· Schmitt triggers and noise protection filters on I2C bus input· Low power CMOS technolog...

CAT24C208 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CAT24C208
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Supports Standard and Fast I2C protocol*
· 2.5V to 5.5V operation
· 16-byte page write buffer
· Schmitt triggers and noise protection filters
   on I2C bus input
· Low power CMOS technology
· 1,000,000 program/erase cycles
· 100 year data retention
· Industrial temperature range
· RoHS-compliant 8-lead SOIC package


Pinout

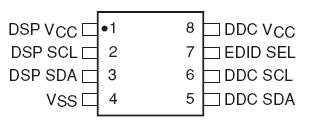

Connection Diagram


Specifications

Temperature Under Bias .................. -55°C to +125°C
Storage Temperature........................ -65°C to +150°C
Voltage on Any Pin with
Respect to Ground(2) ................-2.0V to +VCC + 2.0V
VCC with Respect to Ground ................-2.0V to +7.0V
Package Power Dissipation
Capability (TA = 25°C) ..................................NN. 1.0W
Lead Soldering Temperature (10 secs) ............ 300°C
Output Short Circuit Current(3) ....................... 100mA


Description

The CAT24C208 is an 8-Kbit Dual Port Serial CMOS EEPROM internally organized as 4 segments of 256 bytes each. The CAT24C208 features a 16-byte page write buffer and can be accessed from either of two separate I2C compatible ports, DSP (SDA, SCL) and DDC (SDA, SCL).

Arbitration between the two interface ports is automatic and allows the appearance of individual access to the memory from each interface.
