Product Details

Description

Features:

* 400 kHz I ²C bus compatible*
* 1.8 to 5.5 volt operation
* Low power CMOS technology
* Self-timed write cycle with auto-clear
* 1,000,000 Program/erase cycles
* 100 year data retention
* 8-pin DIP, 8-pin SOIC, 8 pin TSSOP and SOT-23
* Industrial and Extended Temperature Ranges 1,000,000 Program/erase cycles
* 100 year data retention
* 8-pin DIP, 8-pin SOIC, 8 pin TSSOP and SOT-23
* Industrial and Extended Temperature Ranges

Pinout

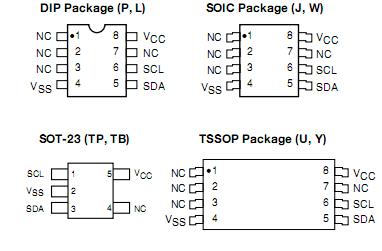

Connection Diagram

Specifications

Temperature Under Bias ................. 55°C to +125°C
Storage Temperature....................... 65°C to +150°C
Voltage on Any Pin with
Respect to Ground(1) ............2.0 V to VCC + 2.0 V
VCC with Respect to Ground ............. 2.0 V to +7.0 V
Package Power Dissipation
Capability (TA = 25°C) .................................. 1.0 W
Lead Soldering Temperature (10 seconds) ...... 300°C
Output Short Circuit Current (2)....................... 100 mA

Description

The CAT24C00 is a 128-bit Serial CMOS EEPROM internally organized as 16 words of 8 bits each. Catalyst's advanced CMOS technology substantially reduces device power requirements. The device operates via the I²C bus serial interface and is available in 8-pin DIP, 8-pin SOIC, 8-pin TSSOP and 5-pin SOT-23.
