Bt829A

Features: • Single-chip composite/S-Video NTSC/PAL/SECAM to YCrCb digitizer• On-chip UltralockTM• Square pixel and CCIR601 resolution for: NTSC (M) NTSC (M) without 7.5IRE pedestal PAL (B, D, G, H, I, M, N, N combination) SECAM• Chroma comb filter• Arbitrary horizonta...

product image

Bt829A Picture
See larger image
SeekIC No. : 004302629 Detail

Bt829A: Features: • Single-chip composite/S-Video NTSC/PAL/SECAM to YCrCb digitizer• On-chip UltralockTM• Square pixel and CCIR601 resolution for: NTSC (M) NTSC (M) without 7.5IRE pedestal...

Bt829A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Bt829A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single-chip composite/S-Video NTSC/PAL/SECAM to YCrCb digitizer
• On-chip UltralockTM
• Square pixel and CCIR601 resolution for:
NTSC (M)
NTSC (M) without 7.5IRE pedestal
PAL (B, D, G, H, I, M, N, N combination)
SECAM
• Chroma comb filter
• Arbitrary horizontal and 5-tap vertical filtered scaling
• Hardware closed-caption decoder
• Vertical Blanking Interval (VBI) data pass-through
• Arbitrary temporal decimation for a reduced frame-rate video sequence
• Programmable hue, brightness, saturation, and contrast
• User-programmable cropping of the video window
• 2x oversampling to simplify external analog filtering
• Two-wire Inter-Integrated Circuit (I2C) bus interface
• 8- or 16-bit pixel interface
• YCrCb (4:2:2) output format
• Software selectable four-input analog MUX
• 4 fully programmable GPIO bits
• Auto NTSC/PAL format detect
• Automatic Gain Control (AGC)
• Typical power consumption 0.85 W
• IEEE 1149.1 Joint Test Action Group (JTAG) interface
• 100-Pin PQFP and TQFP packages


Application

• Multimedia
• Image processing
• Desktop video
• Video phone
• Teleconferencing
• Interactive video


Pinout

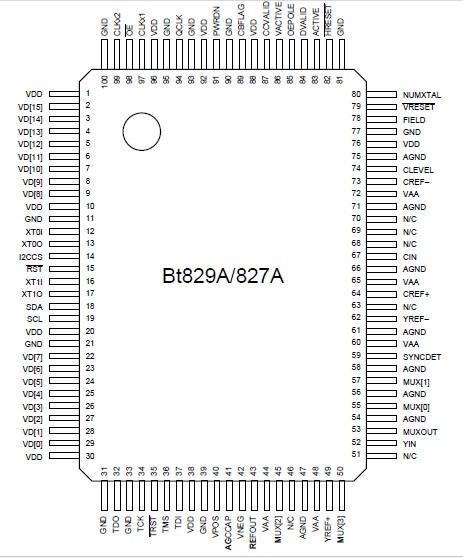

Connection Diagram
