Bt817A

Features: • Single-Chip Composite/S-Video NTSC/PAL to YCrCb Digitizer• On-Chip UltralockTM• Square Pixel and CCIR601 Resolution for NTSC and PAL• Chroma Comb Filtering• Arbitrary Horizontal Scaling and Vertical Scaling (using line store)• Arbitrary Temporal Deci...

product image

Bt817A Picture
See larger image
SeekIC No. : 004302625 Detail

Bt817A: Features: • Single-Chip Composite/S-Video NTSC/PAL to YCrCb Digitizer• On-Chip UltralockTM• Square Pixel and CCIR601 Resolution for NTSC and PAL• Chroma Comb Filtering•...

Bt817A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Bt817A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single-Chip Composite/S-Video NTSC/PAL to YCrCb Digitizer
• On-Chip UltralockTM
• Square Pixel and CCIR601 Resolution for NTSC and PAL
• Chroma Comb Filtering
• Arbitrary Horizontal Scaling and Vertical Scaling (using line store)
• Arbitrary Temporal Decimation for a Reduced Frame-Rate Video Sequence
• Programmable Hue, Brightness, Saturation, and Contrast
• User-Programmable Cropping of the Video Window
• 2x Oversampling to Simplify External Analog Filtering
• Two-Wire I2C Bus Interface
• On-Chip 40-Pixel-Deep Asynchronous Output FIFO
• 8- or 16-Bit Pixel Interface
• YCrCb (4:2:2) Output Format
• Software Selectable Three-Input Analog Mux
• Auto NTSC/PAL Format Detect
• Automatic Gain Control
• IEEE 1149.1 (JTAG) Interface
• 100-Pin PQFP and TQFP Packages


Application

• Multimedia
• Image Processing
• Desktop Video
• Video Phone
• Teleconferencing
• Interactive Video

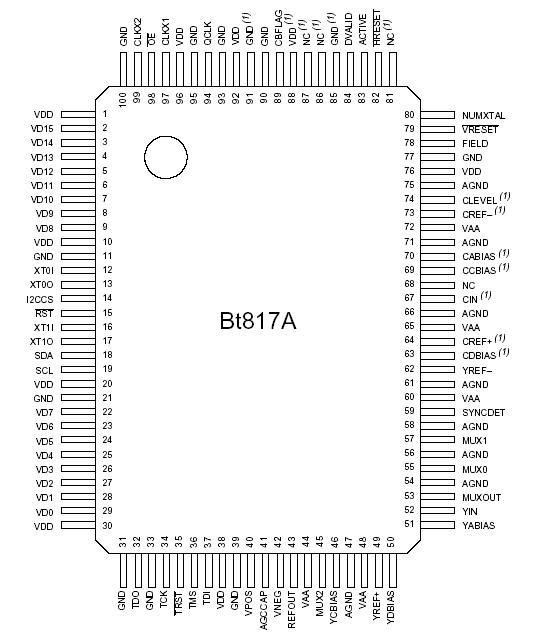

Pinout

Connection Diagram
