BYV26D

Features: * Glass passivated* High maximum operating temperature* Low leakage current* Excellent stability* Guaranteed avalanche energy absorption capability* Available in ammo-pack.PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VRRM repetitive peak reverse voltage ...

product image

BYV26D Picture
See larger image
SeekIC No. : 004305877 Detail

BYV26D: Features: * Glass passivated* High maximum operating temperature* Low leakage current* Excellent stability* Guaranteed avalanche energy absorption capability* Available in ammo-pack.PinoutSpecificat...

BYV26D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BYV26D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Glass passivated
* High maximum operating temperature
* Low leakage current
* Excellent stability
* Guaranteed avalanche energy absorption capability
* Available in ammo-pack.




Pinout

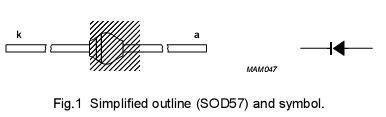

Connection Diagram




Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM repetitive peak reverse voltage 800 V
VR continuous reverse voltage 800 V
I F(AV) average forward current Ttp =85 °C; lead length = 10 mm;
see Figs 2 and 3;
averaged over any 20 ms period;see also Figs 10 and 11
Tamb =60 °C; PCB mounting (see Fig.19); see Figs 4 and 5;averaged over any 20 ms period;see also Figs 10 and 11

1.00


0.65

 A
IFRM repetitive peak forward current Ttp =85 °C; see Figs 6 and 7 10.0 A
IFRM repetitive peak forward current Tamb =60 °C;see Figs 8 and 9
 6.0
 A
IFSM non-repetitive peak forward current t = 10 ms half sinewave;
Tj =Tj max prior to surge;
VR =VRRMmax
 30
 A
E RSM non-repetitive peak reverse avalanche energy L = 120 mH; Tj =Tj max prior to surge; inductive load switched off 10 mJ
Tstg storage temperature -65 +175
Tj operating junction temperature -65 +175





Description

Ultra Fast Avalanche Sinterglass Diode

Rugged glass SOD57 package, BYV26D is using a high temperature alloyed construction.

BYV26D is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.
