Product Details

Description



Features:

* Glass passivated
* High maximum operating temperature
* Low leakage current
* Excellent stability
* Guaranteed avalanche energy absorption capability
* Available in ammo-pack.

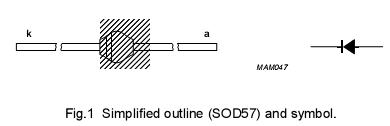

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM repetitive peak reverse voltage 100 V
VR crest working reverse voltage 100 V
IF(AV) average forward current Ttp =55 °C; lead length = 10 mm;
see Figs 2; 3 and 4
averaged over any 20 ms period;
see also Figs 14; 15 and 16		 2.0 A
IF(AV) average forward current Tamb =65 °C; PCB mounting (see
Fig.25); see Figs 5; 6 and 7
averaged over any 20 ms period;
see also Figs 14; 15 and 16		 1.3 A
IFRM repetitive peak forward current Ttp =65 °C; see Fig.6 18 A
IFRM repetitive peak forward current Tamb =60 °C; see Fig.7 12 A
IFSM non-repetitive peak forward current t = 10 ms half sine wave; Tj =Tj max
prior to surge; VR =VRRMmax		 50 A
ERSM non-repetitive peak reverse
avalanche energy		 L = 120 mH; Tj =Tj max prior to surge;
inductive load switched off		 20 mJ
Tstg storage temperature -65 +175
Tj operating junction temperature see Figs 17 and 18 -65 175



Description

Rugged glass SOD57 package, BYV2100 is using a high temperature alloyed  construction.This package is hermetically sealed and fatigue free as coefficients of
expansion of all used parts are matched.
