BYV143F-40

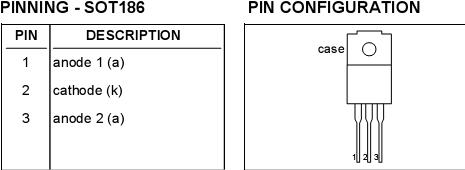

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VRRM	Peak repetitive reverse Voltage			40	V
VRWM	Working peak reverse voltage			40	V
VR	continuous reverse voltage			40	V
I O(AV)	Average rectified output current (both diodes conducting)	square wave; = 0.5; Tmb 104		20	A
I O(RMS)	RMS output current (both diodes conducting)			20	A
I FRM	repetitive peak forward current	t = 25 s; = 0.5;Ths87		30	A
IFSM	non-repetitive peak forward current	t = 10 ms t = 8.3 ms sinusoidal; with reapplied VRRMmax)		100 110	A

I RRM	Peak repetitive reverse surge current	tp = 2 s; = 0.001		1	A
I RSM	Peak non-repetitive reverse surge current	tp = 100 s		1	A
I2t	I2t for fusing	t = 10 ms		50	A2s
Tstg	storage temperature		-65	+175
Tj	operating junction temperature			+150

Description

Dual, low leakage, platinum barrier,schottkyrectifier BYV143F-40 diodesina fullpack plastic envelope, featuring low forward voltage drop, absence of stored charge. and guaranteed reversesurgecapability.BYV143F-40 areintendedforuseinswitchedmode power supplies and high frequency  circuits in general where low conductionandzeroswitchinglosses are important.
