Product Details

Description



Features:

* Low switching losses
* Fast recovery time
* Guard ring protected
* Hermetically sealed leaded glass package.


Application

* Low power, switched-mode power supplies
* Rectifying
* Polarity protection.


Pinout

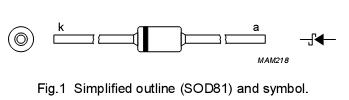

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM repetitive peak reverse voltage 20 V
I F(AV) average forward current note 1

1

 A
Tstg storage temperature -65 +150
Tj operating junction temperature see Fig.7 +125



Description

The BYV10-20 to BYV10-40 types are Schottky barrier diodes fabricated in planar technology, and encapsulated in SOD81 hermetically sealed glass packages incorporating Implotec TM(1)  technology.
