BYV118B30

Features:

* Low forward volt drop
* Fast switching
* Reverse surge capability
* High thermal cycling performance
* Low thermal resistance

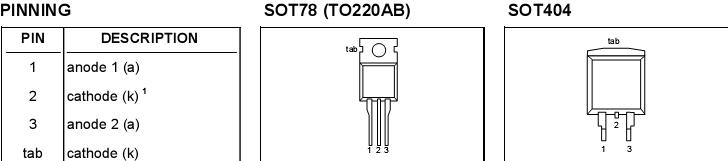

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VRSM	repetitive peak reverse voltage			35	V
VRWM	Crest working reverse voltage			35	V
VR	Continuous reverse voltage			35	V
IO(AV)	Average rectified forward current (both diodes conducting)	square wave; = 0.5; Ths  127		10	A
IFRM	Peak repetitive forward current	square wave; = 0.5; Ths  127		10	A
IFSM	Peak non-repetitive forward current	t = 10 ms t = 8.3 ms sinusoidal; Tj= 150 prior to surge; with reapplied VRWM(max)		100 110	A

I RRM	Peak repetitive reverse surge current per diode	pulse width and repetition rate limited by Tj max		1	A
Tstg	storage temperature			+150
Tj	operating junction temperature

Description

Dual, common cathode schottky rectifier BYV118B30 diodes in a conventional leaded plastic package and a surface mounting plastic package. Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies.

The BYV118 series is supplied in the SOT78 conventional leaded package.
The BYV118B series is supplied in the SOT404 surface mounting package.
