BYV1100

Features: * Glass passivated* High maximum operating temperature* Low leakage current* Excellent stability* Available in ammo-pack.PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VRRM repetitive peak reverse voltage 100 V VR continuous reverse voltage ...

product image

BYV1100 Picture
See larger image
SeekIC No. : 004305844 Detail

BYV1100: Features: * Glass passivated* High maximum operating temperature* Low leakage current* Excellent stability* Available in ammo-pack.PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX....

BYV1100 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BYV1100
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Glass passivated
* High maximum operating temperature
* Low leakage current
* Excellent stability
* Available in ammo-pack.


Pinout

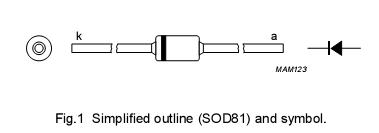

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM repetitive peak reverse voltage 100 V
VR continuous reverse voltage 100 V
I F(AV) average forward current Ttp =55 °C; lead length = 10 mm;
averaged over any 20 ms period;
see Figs.2 and 4

Tamb =60 °C; printed-circuit board
mounting, see Fig.12;
averaged over any 20 ms period;
see Figs.3 and 4		 1.7



1.0		 A
IFRM repetitive peak forward current Ttp =55 °C; see Fig.6

Tamb =60 °C; see Fig.7		 15

9.5		 A
IFSM non-repetitive peak forward current t = 10 ms half sine wave;
Tj =Tj max prior to surge;
VR =VRRMmax		 15 A
Tstg storage temperature -65 +175
Tj operating junction temperature see Figs 17 and 18 -65 175



Description

Cavity free cylindrical glass package through Implotec(TM)(1)  technology. BYV1100 is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.
