BYR29F-700

Features: * Low forward volt drop* Fast switching* Soft recovery characteristic* Reverse surge capability* High thermal cycling performance* Isolated mounting tabPinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VRRM Peak repetitive reverseVoltage 700 V VRWM ...

product image

BYR29F-700 Picture
See larger image
SeekIC No. : 004305712 Detail

BYR29F-700: Features: * Low forward volt drop* Fast switching* Soft recovery characteristic* Reverse surge capability* High thermal cycling performance* Isolated mounting tabPinoutSpecifications SYMBOL PA...

BYR29F-700 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BYR29F-700
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* Reverse surge capability
* High thermal cycling performance
* Isolated mounting tab


Pinout

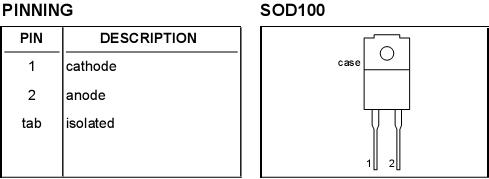

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM Peak repetitive reverse
Voltage		 700 V
VRWM Working peak reverse
voltage		 700 V
VR continuous reverse voltage Ths 136 700 V
I F(AV) Average rectified forward
current		 square wave; = 0.5; Ths 73

8

 A
I FRM repetitive peak forward current square wave;= 0.5; Tmb 128 16 A
IFSM non-repetitive peak forward current t = 10 ms
t = 8.3 ms
sinusoidal; with reapplied VRRMmax)
 60
66


 A
Tstg storage temperature -40 +150
Tj operating junction temperature +150



Description

Ultra-fast, epitaxial rectifier BYR29F-700 diodes intended for use as output rectifiers in high frequency switched mode power supplies.

The BYR29F series BYR29F-700 is supplied in the conventional leaded SOD100 package.
