BYQ30EB-200

PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VRRM Peak repetitive reverseVoltage 200 V VRWM Working peak reversevoltage 200 V VR continuous reverse voltage 200 V I O(AV) Output current (both diodesconducting)1 square wave; = 0.5; ...

product image

BYQ30EB-200 Picture
SeekIC No. : 004305696 Detail

BYQ30EB-200: PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VRRM Peak repetitive reverseVoltage 200 V VRWM Working peak reversevoltage 200 V VR continuous rev...

floor Price/Ceiling Price

Part Number:
BYQ30EB-200
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

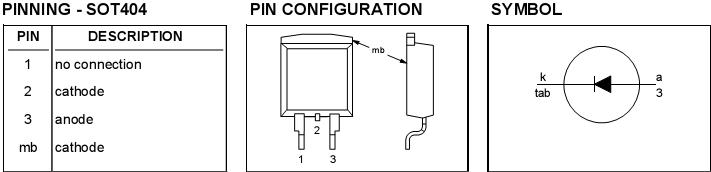

  Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRRM Peak repetitive reverse
Voltage
200 V
VRWM Working peak reverse
voltage
200   V
VR continuous reverse voltage 200   V
I O(AV) Output current (both diodes
conducting)1
square wave; = 0.5; Tmb 104

16

A
I O(RMS) RMS forward current

23

A
I FRM Repetitive peak forward current per diode t = 25 s;  = 0.5; Tmb 104 16 A
IFSM non-repetitive peak forward current t = 10 ms
t = 8.3 ms
sinusoidal; with reapplied VRRMmax)
100
110


A
I2t I2t for fusing t = 10 ms 50 A2S
I RRM Peak repetitive reverse
surge current
tp = 2 s; = 0.001 0.2 A
IRSM Non-repetitive peak reverse
current per diode
tp = 100 s 0.2 A
Tstg storage temperature -40 +150
Tj operating junction temperature +150



Description

Glass passivated high efficiency rugged dual rectifier BYQ30EB-200 diodes in a plastic envelope suitable for surface  mounting, featuring low forward voltage drop, ultra-fast recovery times and soft recovery characteristic. BYQ30EB-200 can withstand reverse voltage transients and have guaranteed reverse surge and ESD capability. BYQ30EB-200 are intended for use in switched mode power supplies and high frequency circuits in general where low conduction and switching losses are essential.
