BYQ30E-200

Product : Ultra Fast Recovery Rectifiers
Forward Voltage Drop : 1.25 V
Reverse Voltage : 200 V
Mounting Style : Through Hole
Reverse Current IR : 30 uA
Recovery Time : 25 ns
Configuration : Dual Common Cathode
Package / Case : TO-220AB
Forward Continuous Current : 16 A
Max Surge Current : 88 A
Packaging : Rail


Features:

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* Reverse surge capability
* High thermal cycling performance
* Low thermal resistance

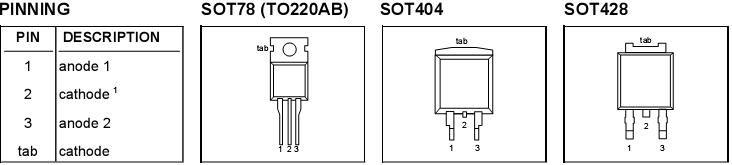

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VRRM	Peak repetitive reverse Voltage			200	V
VRWM	Working peak reverse voltage			200	V
VR	continuous reverse voltage			150	V
I O(AV)	Average rectified output current (both diodes conducting)	square wave; = 0.5; Tmb 104		16	A
I FRM	repetitive peak forward current	square wave;= 0.5; Tmb 104		16	A
IFSM	non-repetitive peak forward current	t = 10 ms t = 8.3 ms sinusoidal; with reapplied VRRMmax)		80 88	A

I RRM	Peak repetitive reverse surge current	tp = 2 s; = 0.001		0.2	A
I RSM	Peak non-repetitive reverse surge current	tp = 100 s		0.2	A
Tstg	storage temperature		-40	+150
Tj	operating junction temperature			+150

Description

Dual, ultra-fast, epitaxial rectifier BYQ30E-200 diodes intended for use as output rectifiers in high frequency switched mode power supplies.
The BYQ30E series is supplied in the SOT78 conventional leaded package.
The BYQ30EB series is supplied in the SOT404 surface mounting package.
The BYQ30ED series is supplied in the SOT428 surface mounting package.
