Features:

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* High thermal cycling performanc
* Isolated mounting tab


Pinout

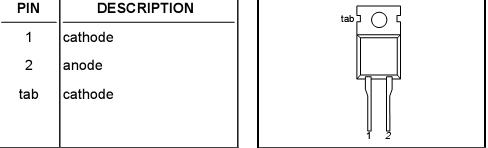

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRSM Peak non-repetitive peak
reverse voltage		 1500 V
VRRM Peak repetitive reverse
voltage		 1500 V
VRWM Crest working reverse voltage 1300 V
I F(peak) Peak working forward curren 16-32kHz TV
31-70kHz monitor

10
7

 A
I FRM Peak repetitive forward
current		 sinusoidal; a = 1.57 60 A
IF(RMS) RMS forward current 15.7 A
IFSM Peak non-repetitive forward
current		 t = 10 ms
t = 8.3 ms
sinusoidal; Tj= 150 prior to surge;
with reapplied VRWM(max)		 60
66

 A
Tstg storage temperature -40 +150
Tj operating junction temperature +150




Description

Glass-passivated double diffused rectifierdiodefeaturinglowforward voltage drop, fast reverse recovery and soft recovery characteristic. BY359F-1500 is intended for use in TV receivers and PC monitors.

The BY359F series is supplied in the conventional leaded SOD100 package.
