BY359-1500S

Features: * Low forward volt drop* Fast switching* Soft recovery characteristic* High thermal cycling performance* Low thermal resistancePinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VRSM Peak non-repetitive peakreverse voltage 1500 V VRRM Peak repetitive...

product image

BY359-1500S Picture
See larger image
SeekIC No. : 004305320 Detail

BY359-1500S: Features: * Low forward volt drop* Fast switching* Soft recovery characteristic* High thermal cycling performance* Low thermal resistancePinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN....

BY359-1500S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BY359-1500S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Low thermal resistance


Pinout

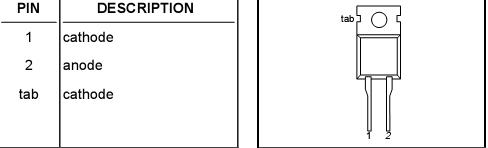

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRSM Peak non-repetitive peak
reverse voltage		 1500 V
VRRM Peak repetitive reverse
voltage		 1500 V
VRWM Crest working reverse voltage 1300 V
I F(peak) Peak working forward curren 16-32kHz TV
31-70kHz monitor

10
7

 A
I FRM Peak repetitive forward
current		 sinusoidal; a = 1.57 60 A
IF(RMS) RMS forward current 15.7 A
IFSM Peak non-repetitive forward
current		 t = 10 ms
t = 8.3 ms
sinusoidal; Tj= 150 prior to surge;
with reapplied VRWM(max)		 60
66

 A
Tstg storage temperature -40 +150
Tj operating junction temperature +150



Description

Glass-passivated double diffused rectifierdiodefeaturinglowforward voltage drop, fast reverse recovery and soft recovery characteristic. BY359-1500S is intended for use in TV receivers and PC monitors.

The BY359 series BY359-1500S is supplied in the conventional leaded SOD59 (TO220AC) package.
