BY359DX-1500

Features:

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Isolated mounting tab

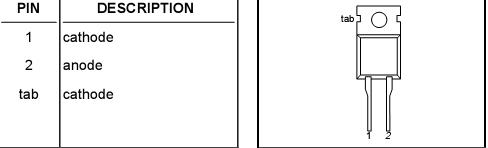

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VRSM	Peak non-repetitive peak reverse voltage			1500	V
VRRM	Peak repetitive reverse voltage			1500	V
VRWM	Crest working reverse voltage			1300	V
I F(AV)	Peak working forward curren	sinusoidal; a = 1.57; Ths = tbf		10	A
I FRM	Peak repetitive forward current	sinusoidal; a = 1.57		60	A
IF(RMS)	RMS forward current			20	A
IFSM	Peak non-repetitive forward current	t = 10 ms t = 8.3 ms sinusoidal; Tj= 150 prior to surge; with reapplied VRWM(max)		60 66	A

Tstg	storage temperature		-40	+150
Tj	operating junction temperature			+150

Description

Glass-passivated double diffused rectifierdiodefeaturinglowforward voltage drop, fast reverse recovery and soft recovery characteristic. BY359DX-1500 is intended for use in TV receivers,series resonant switched mode power supplies and other high voltage circuits.

TheBY359DX series BY359DX-1500 is supplied in the conventional leaded SOD117 package.
