BUK218-50DC

Features: Vertical power TrenchMOSLow on-state resistanceCMOS logic compatibleVery low quiescent currentOvertemperature protectionLoad current limitingOverload and short circuit protectionSelf resetting overcurrent protectionOvervoltage and undervoltage shutdown with hysteresisOff-state open circu...

product image

BUK218-50DC Picture
See larger image
SeekIC No. : 004304211 Detail

BUK218-50DC: Features: Vertical power TrenchMOSLow on-state resistanceCMOS logic compatibleVery low quiescent currentOvertemperature protectionLoad current limitingOverload and short circuit protectionSelf reset...

BUK218-50DC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BUK218-50DC
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Vertical power TrenchMOS
Low on-state resistance
CMOS logic compatible
Very low quiescent current
Overtemperature protection
Load current limiting
Overload and short circuit protection
Self resetting overcurrent protection
Overvoltage and undervoltage shutdown with hysteresis
Off-state open circuit load detection
Diagnostic status indication
Voltage clamping for turn off of inductive loads
ESD protection on all pins
Reverse battery, overvoltage and transient protection


Application

General purpose switch for driving lamps, motors, solenoids, heaters.


Pinout

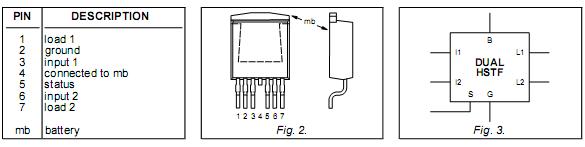

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VBG Continuous supply voltage 0 50 V
IL Continuous load current per channel Tmb135 - 8 A
PD Total power dissipation Tmb25 - 83.3 W
Tstg Storage reperature -55 175
Tj Continuous junction temperature1 -40 150
Reverse battery voltages2
VGB Continuous reverse voltage - 16 V
VGB Peak reverse voltage - 32 V
Application information
RI, RS Extemal resistors3 to linit input, status currents 3.2 - k
Input and status currents
II Continuous input current -5 5 mA
IS Continuous status current -5 5 mA
II Repetitive peak input current 0.1, tp=300s -50 50 mA
IS Repetitive peak status current 0.1, tp=300s -50 50 mA
Inductive load clamping VBG=13V, IL=8A
EBL Non-repetitive clamping energy(one channnel) Tj=150 prior to turn-off - 150 mJ



Description

Monolithic dual channel high side protected power switch in TOPFET2 BUK218-50DC technology assembled in a 7 pin plastic surface mount package.
