Features:

*Vertical power DMOS switch
*Low on-state resistance
*5 V logic compatible input with hysteresis
*Overtemperature protection - self resets with hysteresis
*Overload protection against short circuit load with output current limiting; latched - reset by input
*High supply voltage load protection
*Supply undervoltage lock out
*Status indication for overload protection activated
*Diagnostic status indication of open circuit load
*Very low quiescent current
*Voltage clamping for turn off of
inductive loads
ESD protection on all pins
Reverse battery and
overvoltage protection
with external ground resistor


Application

General controller for driving lamps, motors, solenoids, heaters.


Pinout

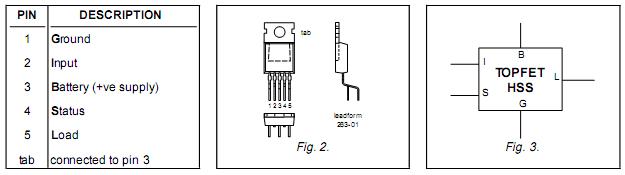

Connection Diagram


Specifications

 SYMBOL  PARAMETER  CONDITIONS  MIN.  MAX.  UNIT
   Battery voltages
 VBG  Continuous off-state supply voltage  -  0  50  V
   Reverse battery voltages1  External resistors:
 -VBG  Repetitive peak supply voltages  RG150,RI=RS4.7k,0.1  -  32
 16		  V
 V
 -VBG  Continuous reverse supply voltage RG150,RI=RS4.7k,  -  15  A
 IL  Continuous load current  Tmb110  -  83.3  W
 PD  Total power dissipation  Tmb25  -  175
 Tstg  Storage temperature  -  -55  150
 Tj  Continuous junction temperature2  -  -  250
 Tsold  Lead temperature  during soldering  -
   Input and status
 II  Continuous input current  -  -5  5  mA
 IS  Continuous status current  -  -5  5  mA
 II  Repetitive peak input current  0.1  -20  20  mA
 IS  Repetitive peak status current  0.1  -20  20  mA
   Inductive load clamping
 EBL  Non-repetitive clamping energy  Tmb=150 prior to turn-off  -  1.2  J



Description

Monolithic temperature and overload protected power switch based on MOSFET BUK201-50X technology in a 5 pin plastic envelope, configured as a single high side switch.
