BUK206-50Y

Features: Vertical power DMOS switchLow on-state resistance5 V logic compatible inputOvertemperature protection - self resets with hysteresisOverload protection against short circuit load with output current limiting; latched - reset by inputHigh supply voltage load protectionSupply undervoltage l...

product image

BUK206-50Y Picture
See larger image
SeekIC No. : 004304200 Detail

BUK206-50Y: Features: Vertical power DMOS switchLow on-state resistance5 V logic compatible inputOvertemperature protection - self resets with hysteresisOverload protection against short circuit load with outpu...

BUK206-50Y Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BUK206-50Y
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Vertical power DMOS switch
Low on-state resistance
5 V logic compatible input
Overtemperature protection - self resets with hysteresis
Overload protection against short circuit load with output current limiting; latched - reset by input
High supply voltage load protection
Supply undervoltage lock out
Status indication for overload protection activated
Diagnostic status indication of open circuit load
Very low quiescent current
Voltage clamping for turn off of inductive loads
ESD protection on all pins
Reverse battery and overvoltage protection


Application

General controller for driving lamps, motors, solenoids, heaters.


Pinout

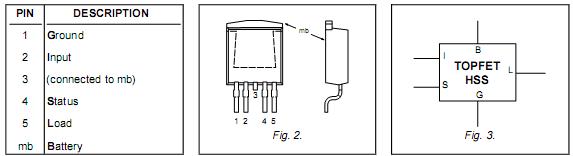

Connection Diagram


Specifications

 SYMBOL  PARAMETER  CONDITIONS  MIN.  MAX.  UNIT
   Battery voltages
 VBG  Continuous off-state supply voltage  -  0  50  V
   Reverse battery voltages1  External resistors:
 -VBG  Repetitive peak supply voltages  RI=RS4.7k,0.1  -  32
 16		  V
 V
 -VBG  Continuous reverse supply voltage RI=RS4.7k  -  20  A
 IL  Continuous load current  Tmb110  -  125  W
 PD  Total power dissipation  Tmb25  -  175
 Tstg  Storage temperature  -  -55  150
 Tj  Continuous junction temperature2  -  -  250
 Tsold  Lead temperature  during soldering  -
   Input and status
 II  Continuous input current  -  -5  5  mA
 IS  Continuous status current  -  -5  5  mA
 II  Repetitive peak input current  0.1  -20  20  mA
 IS  Repetitive peak status current  0.1  -20  20  mA
   Inductive load clamping
 EBL  Non-repetitive clamping energy  Tmb=150 prior to turn-off  -  1.7  J



Description

Monolithic temperature and overload protected power switch based on MOSFET BUK206-50Y technology in a 5 pin plastic surface mount envelope, configured as a single high side switch.
