Features:

Vertical power DMOS switch
Low on-state resistance
5 V logic compatible input with hysteresis
Overtemperature protection -self resets with hysteresis
Overload protection against short circuit load with output current limiting; latched - reset by input
High supply voltage load protection
Supply undervoltage lock out
Status indication for overload protection activated
Diagnostic status indication of open circuit load
Very low quiescent current
Voltage clamping for turn off of inductive loads
ESD protection on all pins
Reverse battery and overvoltage protection with external ground resistor






Application

General controller for driving lamps, motors, solenoids, heaters.


Pinout

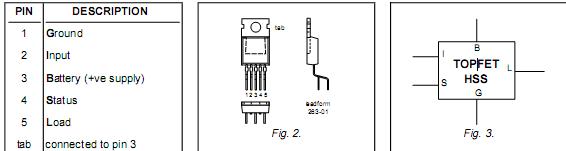

Connection Diagram


Specifications

 SYMBOL  PARAMETER  CONDITIONS  MIN.  MAX.  UNIT
   Battery voltages
 VBG  Continuous off-state supply voltage  -  0  50  V
   Reverse battery voltages1  External resistors:
 -VBG  Repetitive peak supply voltages  RI=RS4.7k,0.1  -  32
 16		  V
 V
 -VBG  Continuous reverse supply voltage RI=RS4.7k  -  4  A
 IL  Continuous load current  Tmb110  -  50  W
 PD  Total power dissipation  Tmb25  -  175
 Tstg  Storage temperature  -  -55  150
 Tj  Continuous junction temperature2  -  -  250
 Tsold  Lead temperature  during soldering  -
   Input and status
 II  Continuous input current  -  -5  5  mA
 IS  Continuous status current  -  -5  5  mA
 II  Repetitive peak input current  0.1  -20  20  mA
 IS  Repetitive peak status current  0.1  -20  20  mA
   Inductive load clamping
 EBL  Non-repetitive clamping energy  Tmb=150 prior to turn-off  -  1.4  J



Description

Monolithic temperature and overload protected power switch based on MOSFET BUK203-50X technology in a 5 pin plastic envelope, configured as a single high side switch.
