Crosstalk
:
Bandwidth
:
On Time (Max)
:
Off Time (Max)
:
Switch Voltage (Max)
:
Operating Supply Voltage
:
Number of Switches
:
Switch Configuration
:
Mounting Style
: SMD/SMT
On Resistance (Max)
: 0.035 Ohms
Maximum Operating Temperature
: + 150 C
Package / Case
: TO-263-16
Features: • Quad D-MOS switch
• Free configurable as bridge or quad-switch
• Optimized for DC motor management applications
• Low RDS ON: 26 m high-side switch, 14 m low-side switch (typical values @ 25 °C)
• Maximum peak current: typ. 42 A @ 25 °C
• Very low quiescent current: typ. 4 A @ 25 °C
• Small outline, thermal optimized PowerPak
• Load and GND-short-circuit-protection
• Operates up to 40 V
• Status flag for over temperature
• Open load detection in Off-mode
• Overtemperature shut down with hysteresis
• Internal clamp diodes
• Isolated sources for external current sensing

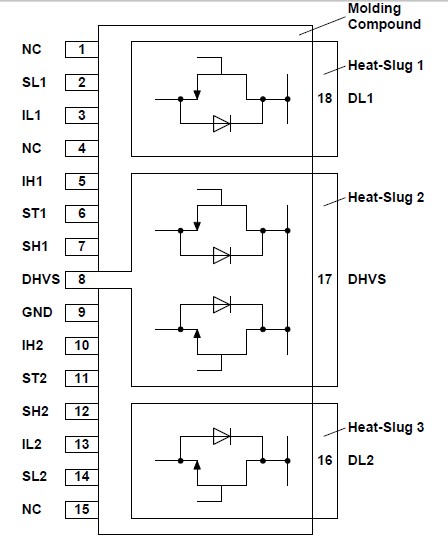

• Under-voltage detection with hysteresisPinout
Specifications 40 °C < Tj < 150 °C
Parameter |
Symbol |
Limit Values |
Unit |
Remarks |
min. |
max. |
High-Side-Switches (Pins DHVS, IH1,2 and SH1,2) |
Supply voltage |
VS |
0.3 |
42 |
V |
|
Supply voltage for full short circuit protection |
VS(SCP) |
|
28 |
V |
|
HS-drain current |
IS |
10 |
* |
A |
TC = 125°C; DC |
HS-input current |
IIH |
5 |
5 |
mA |
Pin IH1 and IH2 |
HS-input voltage |
VIH |
10 |
16 |
V |
Pin IH1 and IH2 |
Note: * internally limitedDescriptionThe
BTS 7810 K is part of the
TrilithIC family containing three dies in one package: One double high-side switch and two low-side switches. The drains of these three vertical DMOS chips are mounted on separated leadframes. The sources are connected to individual pins, so the
BTS 7810 K can be used in H-bridge- as well as in any other configuration. The double high-side is manufactured in
SMART SIPMOS® technology which combines low RDS ON vertical DMOS power stages with CMOS control circuit. The high-side switch is fully protected and contains the control and diagnosis circuit. To achieve low RDS ON and fast switching performance, the low-side switches are manufactured in
S-FET 2 logic level technology. The equivalent standard product is the
SPD30N06S2L-13.
Parameters: Technical/Catalog Information | BTS7810K |
Vendor | Infineon Technologies |
Category | Integrated Circuits (ICs) |
Applications | DC Motor Controller |
Number of Outputs | 1 |
Voltage - Supply | 1.8 V ~ 42 V |
Voltage - Load | - |
Current - Output | 42A |
Operating Temperature | -40°C ~ 150°C |
Package / Case | TO-263-15 (15 leads + 3 tabs) |
Packaging | Tape & Reel (TR) |
Lead Free Status | Contains Lead |
RoHS Status | RoHS Non-Compliant |
Other Names | BTS7810K BTS7810K |
