BTS775

Features: • Quad switch driver• Free configurable as bridge or quad-switch• Optimized for DC motor management applications• Ultra low RDS ON @ 25 °C:High-side switch: typ.85 m,Low-side switch: typ. 45 m • Very high peak current capability• Very low quiescent cur...

product image

BTS775 Picture
See larger image
SeekIC No. : 004303095 Detail

BTS775: Features: • Quad switch driver• Free configurable as bridge or quad-switch• Optimized for DC motor management applications• Ultra low RDS ON @ 25 °C:High-side switch: typ.85 ...

BTS775 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BTS775
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Quad switch driver
• Free configurable as bridge or quad-switch
• Optimized for DC motor management applications
• Ultra low RDS ON @ 25 °C:High-side switch: typ.85 m,Low-side switch: typ. 45 m
• Very high peak current capability
• Very low quiescent current
• Space- and thermal optimized power P-DSO-Package
• Full short-circuit-protection
• Operates up to 40 V
• Status flag diagnosis
• Overtemperature shut down with hysteresis
• Short-circuit detection and diagnosis
• Open-load detection and diagnosis
• C-MOS compatible inputs
• Internal clamp diodes
• Isolated sources for external current sensing
• Over- and under-voltage detection with hysteresis

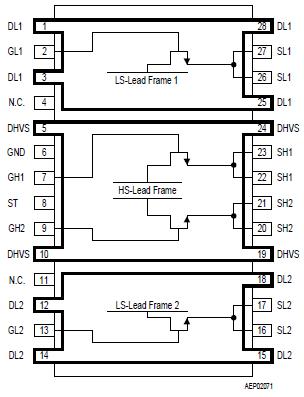

Pinout

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Remarks
min. max.
Supply voltage VS 0.3 43 V -
HS-drain current IDHS -10 * A * internally limited
HS-input current IGH -2 2 mA Pin GH1 and GH2
HS-input voltage VGH -10 16 V Pin GH1 and GH2
Status Output current IST -5 5 mA Pin ST
Break-down voltage V(BR)DSS 40 - V VGS = 0 V; ID <=1mA
LS-drain current IDLS 16 * A * internally limited
LS-input voltage VGL -0.3 10 V Pin GL1 and GL2
Junction temperature Tj -40 150 -
Storage temperature Tstg -50 150 -
LS-junction case RthjCLS - tbd K/W measured to pin3 or 12
HS-junction case RthjCHS - tbd K/W measured to pin19
Junction ambient Rthja - 60 K/W -
Note: Maximum ratings are absolute ratings; exceeding any one of these values may cause irreversible damage to the integrated circuit.


Description

The BTS 775 is a TrilithIC contains one double high-side switch and two low-side switches in one P-DSO-28-9-Package."Silicon instead of heatsink"becomes true

The ultra low RDS ON of this device avoids powerdissipation. BTS775 saves costs in mechanical construction and mounting and increases the efficiency.

The high-side switches are produced in the SIEMENS SMART SIPMOS® technology. BTS775 is fully protected and contains the signal conditioning circuitry for diagnosis. (The comparable standard high-side product is the BTS 621L1.)
