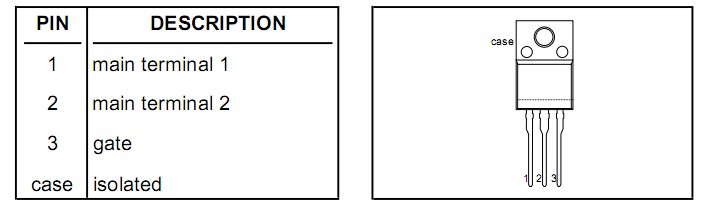

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.			UNIT
V_DRM	Repetitive peak off-state voltages		-	-500 500	-600 600	-800 800	V
I_T(RMS)	RMS on-state current	full sine wave; T_hs 56 ˚C	-	12			A
IT_SM	Non-repetitive peak on-state current	full sine wave; T_j= 25 ˚C prior to surge t = 20 ms t = 16.7 ms	- -	95 105			A A
I²t	I²t for fusing	t = 10 ms	-	45			A²s
dI_T/dt	Repetitive rate of rise of on-state current after triggering	I_TM = 20 A; I_G = 0.2 A; dI_G/dt = 0.2 A/µs T2+ G+ T2+ G- T2- G- T2- G+	- - - -	50 50 50 10			A/µs A/µs A/µs A/µs
I_GM	Peak gate current	over any 20 ms period	-	2			A
V_GM	Peak gate voltage		-	5			V
P_GM	Peak gate power		-	5			W
P_G(AV)	Average gate power		-	0.5			W
T_stg	Storage temperature		-40	150			˚C
T_j	Operating junction temperature		-	125			˚C

Description

Glass passivated triacs BT138X in a full pack plastic envelope, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications of BT138X include motor control, industrial and domestic lighting, heating and static switching.
