BT1306-600D

On-State RMS Current (It RMS) :
Rated Repetitive Off-State Voltage VDRM : 600 V
Mounting Style : Through Hole
Packaging : Reel
Holding Current (Ih Max) : 10 mA
Package / Case : TO-92
Gate Trigger Voltage (Vgt) : 2 V
Gate Trigger Current (Igt) : 7 mA
Off-State Leakage Current @ VDRM IDRM : 3 uA
Breakover Current IBO Max : 8.8 A


Features:

Sensitive gate in all four quadrants
Low cost package.


Application

General purpose bidirectional switching
Phase control applications
Solid state relays
Low power AC fan speed controllers.

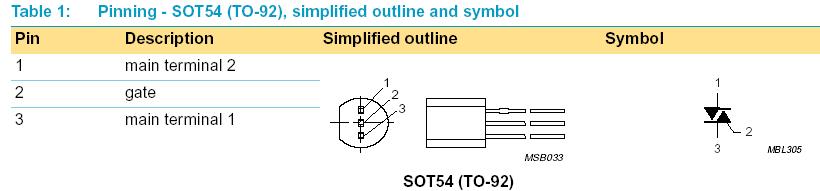

Pinout




Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
VDRM	repetitive peak off-state voltage
	BT1306-600D	25 °C Tj  125 °C	-	600	V
	BT1306-400D		-	400	V
IT(RMS)	on-state current (RMS value)	full sine wave; Tlead  65 °C; Figure 1 and 2	-	0.6	A
ITSM	non-repetitive peak on-state current	full sine wave; Tj = 25 °C prior to surge; Figure 3 and 4
		t = 20 ms	-	8	A
		t = 16.7 ms	-	8.8	A
I2t	I2t for fusing	t = 10 ms	-	0.32	A2s
dIT/dt	repetitive rate of rise of on-state current after triggering	ITM = 1 A; IG = 0.2 A; dIG/dt = 0.2 A/ms
		T2+ G+	-	50	A/µs
		T2+ G-	-	50	A/µs
		T2- G-	-	50	A/µs
		T2- G+	-	10	A/µs
IGM	gate current (peak value)	t = 2 ms max	-	1	A
VGM	gate voltage (peak value)		-	5	V
PGM	gate power (peak value)		-	5	W
PG(AV)	average gate power	t = 2 µs max; Tcase 80 °C	-	0.1	W
Tstg	storage temperature		-40	+150
Tj	junction temperature		-40	+125

Description

Logic level sensitive gate triac BT1306-600D intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.
