Product Details

Description



Pinout

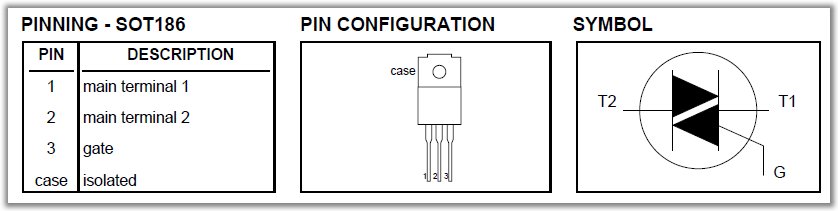

Connection Diagram


Specifications

SYMBOL PARAMETER

CONDITIONS

MIN.

MAX.

UNIT

VDRM
IT(RMS)
ITSM
I2t
dIT/dt
IGM
VGM
PGM
PG(AV)
Tstg
Tj		 Repetitive peak off-state voltages
RMS on-state current
Non-repetitive peak
on-state current
I2t for fusing
Repetitive rate of rise of
on-state current after
triggering
Peak gate current
Peak gate voltage
Peak gate power
Average gate power
Storage temperature
Operating junction temperature		 full sine wave; Tmb 73 °C
full sine wave; Tj = 125 °C prior to surge
t = 20 ms
t = 16.7 ms
t = 10 ms
ITM = 12 A; IG = 0.2 A;
dIG/dt = 0.2 A/ms
                              T2+ G+
                              T2+ G-
                              T2- G-
                              T2- G+
over any 20 ms period

-
-
-
-
-
-
-
-
-
-
-
-
-
-40
-

-500
5001

-600
6001

-800
800

V
A
A
A
A2s
A/s
A/s
A/s
A/s
A
V
W
W

8
55
60
15
50
50
50
10
2
5
5
0.5
150
125




Description

Glass passivated triacs BT137F in a full pack plastic envelope, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications of BT137F include motor control, industrial and domestic lighting, heating and static switching.
