BT136S

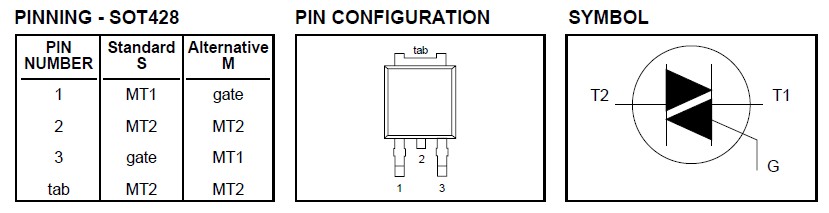

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.			UNIT
VDRM IT(RMS) ITSM I2t dIT/dt IGM VGM PGM PG(AV) Tstg Tj	Repetitive peak off-state voltages RMS on-state current Non-repetitive peak on-state current I2t for fusing Repetitive rate of rise of on-state current after triggering Peak gate current Peak gate voltage Peak gate power Average gate power Storage temperature Operating junction temperature	full sine wave; Tmb 107 °C full sine wave; Tj = 25 °C prior to surge t = 20 ms t = 16.7 ms t = 10 ms ITM = 30 A; IG = 0.2 A; dIG/dt = 0.2 A/ms                               T2+ G+                               T2+ G-                               T2- G-                               T2- G+ over any 20 ms period	- - - - - - - - - - - - - -40 -	-500 5001	-600 6001	-800 800	V A A A A2s A/s A/s A/s A/s A V W W
				4 25 27 3.1 50 50 50 10 2 5 5 0.5 150 125

Description

Glass passivated triacs BT136S in a plastic envelope, suitable for surface mounting, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications of BT136S include motor control, industrial and domestic lighting, heating and static switching.
