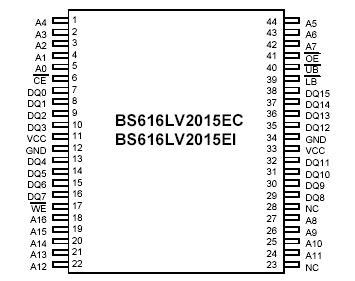

BS616LV2015

1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

The BS616LV2015 is a Random Acce operates from a Advanced CM speed and low of 0.6uA and m Easy memory enable(CE), act drivers.

The BS616LV2015 ha power consum The BS616LV2015 is TSOP Type II and 48-pin BG high performance, very low power CMOS Static ss Memory organized as 131,072 words by 16 bits and wide range of 4.5V to 5.5V supply voltage. OS technology and circuit techniques provide both high power features with a typical CMOS standby current aximum access time of 70/55ns in 5V operation. expansion is provided by an active LOW chip ive LOW output enable(OE) and three-state output s an automatic power down feature, reducing the ption significantly when chip is deselected. available in DICE form, JEDEC standard 44-pin package, JEDEC standard 44-pin TSOP Type II package A package.
