Product Details

Description



Features:

• Very low operation voltage : 2.4 ~ 5.5V
• Very low power consumption :
   Vcc = 3.0V C-grade : 20mA (Max.) operating current
   I- grade : 25mA (Max.) operating current
   0.02uA (Typ.) CMOS standby current
   Vcc = 5.0V C-grade : 35mA (Max.) operating current
   I- grade : 40mA (Max.) operating current
   0.4uA (Typ.) CMOS standby current
• High speed access time : -70 70ns (Max.) at Vcc = 3.0V
• Automatic power down when chip is deselected
• Three state outputs and TTL compatible
• Fully static operation
• Data retention supply voltage as low as 1.5V
• Easy expansion with CE and OE options
• I/O Configuration x8/x16 selectable by LB and UB pin



Pinout

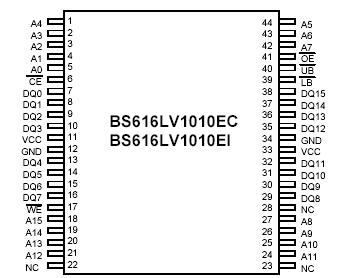

  Connection Diagram


Specifications

SYMBOL PARAMETER RATING UNITS
VTERM Terminal Voltage with
Respect to GND
-0.5 to
Vcc+0.5
V
TBIAS Temperature Under Bias -40 to +85
TSTG Storage Temperature -60 to +150
PT Power Dissipation 1.0 W
IOUT DC Output Current 20 mA

1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

Random Access Memory organized as 65,536 words by 16 bits and operates from a wide range of 2.4V to 5.5V supply voltage. Advanced CMOS technology and circuit techniques of BS616LV1010 provide both high speed and low power features with a typical CMOS standby current of 0.02uA and maximum access time of 70ns in 3V operation.

Easy memory expansion of BS616LV1010 is provided by an active LOW chip enable(CE) and active LOW output enable(OE) and three-state output drivers.

The BS616LV1010 has an automatic power down feature, reducing the power consumption significantly when chip is deselected. The BS616LV1010 is available in the JEDEC standard 44-pin TSOP Type II and 48-pin BGA package.
