BR34L02FV-W

Features: 1) 256k registers * 8 bits serial architecture 2) Single power supply (1.8V to 5.5V) 3) Two wire serial interface 4) Page Write Function (16byte) 5) Write Protect Mode Write protect 1 (Onetime Rom) : 00h to 7Fh Write protect 2 (Hardwire WP PIN) : 00h to FFh 6) Low Power consumption Wr...

product image

BR34L02FV-W Picture
See larger image
SeekIC No. : 004301528 Detail

BR34L02FV-W: Features: 1) 256k registers * 8 bits serial architecture 2) Single power supply (1.8V to 5.5V) 3) Two wire serial interface 4) Page Write Function (16byte) 5) Write Protect Mode Write protect 1 (On...

BR34L02FV-W Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BR34L02FV-W
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) 256k registers * 8 bits serial architecture
2) Single power supply (1.8V to 5.5V)
3) Two wire serial interface
4) Page Write Function (16byte)
5) Write Protect Mode
    Write protect 1 (Onetime Rom)          : 00h to 7Fh
    Write protect 2 (Hardwire WP PIN)    : 00h to FFh
6) Low Power consumption
    Write (5V)  : 1.2mA (Typ.)
    Read (5V)  : 0.2mA (Typ.)
    Standby (5V)  : 0.1A (Typ.)
7) DATA security
    Write protect feature (WP pin)
    Inhibit to WRITE at low VCC
8) Small package - - - - - - SSOP-B8 pin
9) High reliability fine pattern CMOS technology
10) Endurance : 1,000,000 erase/write cycles
11) Data retention : 40years
12) Filtered inputs in SCL*SDA for noise suppression
13) Initial data FFh in all address



Application

General purpose

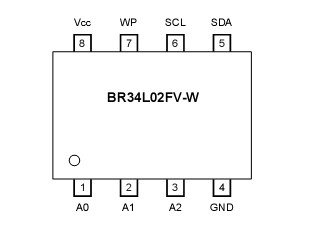

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Limits
Unit
Supply voltage
VCC
-0.3 to +6.5
V
Power dissipation
Pd
300(SSOP-B8) *1
mW
Storage temperature
Tstg
-65 to +125
°C
Operating temperature
Topr
-40 to +85
°C
Terminal voltage
-
-0.3 to VCC+0.3
V

*1  Reduced by 3.0mW for each increase in Ta of 1°C over 25°C


Description

The BR34L02FV-W is a 2k bit EEPROM memory with write-protect function having independent rewrite inhibit area, developed for a DIMM that uses synchronous DRAM memory, and a RIMM that uses RAMBUS DRAM memory. This is a memory IC that reads ID in order for the Plug & Play feature to operate.
