BR34E02

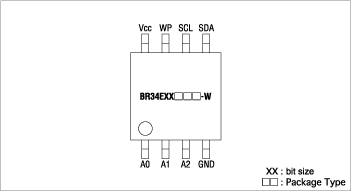

Pinout




Specifications

I/F SPD Density (Kbit) 2 Bit format (wordxbitxbank) 256×8×1 Supply voltage (V) 1.7 to 3.6 Current consumption Operating(mA) 2 Standby(µA) 2 Write cycle time (ms) 5 Operating temperature (ºC) -40 to +85 Data hold years (Years) 40 Number of data rewrite times (Times) 10⁶


Description

[ BR34E02 description ]

?A serial EEPROM BR34E02 (Electrically Erasable Programmable Read Only Memory) is non-volatile memory that can be overwritten electrically, in units of bytes, and BR34E02 is most suitable for data storage use. ROHM's high reliability serial EEPROMs BR34E02 are among the top of their class. They command a large market share and are available in a range of capacities, bus interfaces (Microwire, I²C, SPI), operating voltages (1.8V to 5.5V, 2.5V to 5.5V) and package types, making them ideal for battery powered devices. In addition, the entire series utilizes unique double cell construction, significantly improving reliability, and are both lead-free and RoHS-compliant.This Family is Plug & Play memory modules for SPD.
