BLW85

Transistors RF Bipolar Power RF Transistor

product image

BLW85 Picture
SeekIC No. : 00218295 Detail

BLW85: Transistors RF Bipolar Power RF Transistor

floor Price/Ceiling Price

US $ 28.8~43.2 / Piece | Get Latest Price
Part Number:
BLW85
Mfg:
Advanced Semiconductor, Inc.
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~25
  • 25~50
  • Unit Price
  • $43.2
  • $36
  • $32.4
  • $28.8
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Maximum Operating Frequency : 175 MHz Collector- Emitter Voltage VCEO Max : 16 V
Emitter- Base Voltage VEBO : 4 V Continuous Collector Current : 9 A
Maximum DC Collector Current : 22 A Power Dissipation : 105 W
Package / Case : SOT-123 Packaging : Tray

Description

Configuration :
Emitter- Base Voltage VEBO : 4 V
Packaging : Tray
Maximum Operating Frequency : 175 MHz
Package / Case : SOT-123
Collector- Emitter Voltage VCEO Max : 16 V
Continuous Collector Current : 9 A
Maximum DC Collector Current : 22 A
Power Dissipation : 105 W


Pinout

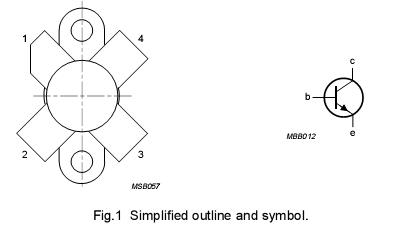

  Connection Diagram


Specifications

Collector-base voltage (open emitter)peak value VCESM  max. 36v
Collector-emitter voltage (open base) Vceo  max. 16v
Emitter-base voltage (open collector)  Vebo  max. 4v
Collector current (average)    IC(AV)  max. 9 A
Collector current (peak value); f > 1 MHz   ICM  max. 22 A
D.C. and r.f. (f > 1 MHz) power
dissipation; Tmb = 25 °C  Ptot ,Prf max. 105 W
Storage temperature  Tstg          -65 to , 150 °C
Operating junction temperature  Tj  max.  200 °C



Description

N-P-N silicon planar epitaxial transistor BLW85 intended for use in class-A, B and C operated mobile h.f. and v.h.f. transmitters with a nominal supply voltage of 12,5 V. The transistor BLW85 is resistance stabilized and is guaranteed to withstand severe load mismatch conditions with a supply over-voltage to 16,5 V.
Matched hFE groups are available on request.

BLW85 has a 3/8" flange envelope with a ceramic cap. All leads are isolated from the flange.
