BLW76

Transistors RF Bipolar Power RF Bipolar Trans

product image

BLW76 Picture
SeekIC No. : 00218380 Detail

BLW76: Transistors RF Bipolar Power RF Bipolar Trans

floor Price/Ceiling Price

Part Number:
BLW76
Mfg:
TriQuint Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

Configuration :
Maximum Operating Frequency :
Collector- Emitter Voltage VCEO Max :
Emitter- Base Voltage VEBO :
Continuous Collector Current :
Maximum DC Collector Current :
Power Dissipation :
Package / Case :
Packaging :


Pinout

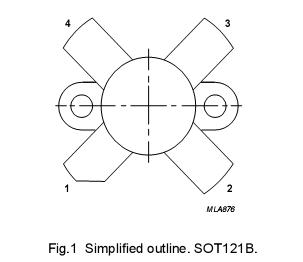

  Connection Diagram


Specifications

Collector-base voltage (open emitter)peak value VCESM  max. 70v
Collector-emitter voltage (open base) Vceo  max. 35v
Emitter-base voltage (open collector)  Vebo  max. 4v
Collector current (average)    IC(AV)  max. 8 A
Collector current (peak value); f > 1 MHz   ICM  max. 20 A
D.C. and r.f. (f > 1 MHz) power
dissipation; Tmb = 25 °C  Ptot ,Prf max. 140 W
Storage temperature  Tstg          -65 to , 150 °C
Operating junction temperature  Tj  max.  200 °C



Description

N-P-N silicon planar epitaxial transistor BLW76 intended for use in class-AB or class-B operated high power transmitters in the h.f. and v.h.f. bands. The transistor BLW76 presents excellent performance as a linear amplifier in the h.f. band. It is resistance stabilized and is guaranteed to withstand severe load
mismatch conditions. Transistors are delivered in matched hFE groups.

The BLW76 has a 1/2" flange envelope with a ceramic cap. All leads are isolated from the flange.
