Product Details

Description



Features:

* Emitter ballasting resistors for an optimum temperature profile
* Gold metallization ensures excellent reliability
* Internal input matching to achieve high power gain and easy design of wideband circuits.


Application

* Base stations in the 820 to 980 MHz range.

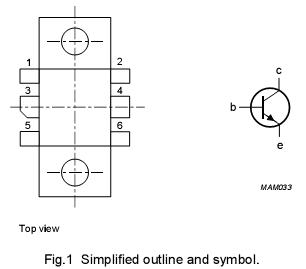

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 70 V
VCES collector-emitter voltage open base  30 V
VEBO emitter-base voltage open collector 3 V
IC collector current(DC) 4 A
IC(AV) average collector current 4 A
Ptot total power dissipation up to Tmb =25 °C 70 W
Tstg storage temperature -65 +150
Tj operating junction temperature 200



Description

NPN silicon planar epitaxial transistor BLV935 intended for common emitter class-AB operation. The transistor has internal input matching by means of MOS capacitors and is encapsulated in a 6-lead SOT273 flange envelope with a ceramic cap. All leads are isolated from the flange.
