Product Details

Description



Features:

* Emitter-ballasting resistors for an optimum temperature profile
* Gold metallization ensures excellent reliability
* Withstands full load mismatch.

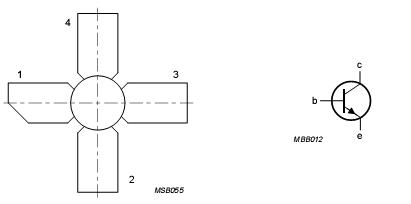

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 20 V
VCES collector-emitter voltage open base  10 V
VEBO emitter-base voltage open collector 3 V
IC,IC(AV) peak collector current DC or average value 2.5 A
ICM peak collector current peak value f > 1 MHz 7.5 A
Ptot total power dissipation RF operation;
Tmb = 25 °C		 35.5 W
Tstg storage temperature -65 +150
Tj operating junction temperature 200



Description

NPN silicon planar epitaxial transistor BLT53 encapsulated in a 4-lead SOT122D studless envelope with a ceramic cap.  BLT53 is designed for common emitter,class-B operation in portable radio transmitters in the 470 MHz communications band. All leads are isolated from the mounting flange.
