Product Details

Description



Features:

* Emitter ballasting resistors for an optimum temperature profile
* Gold metallization ensures excellent reliability.



Application

* Common emitter class-B operation in portable radio transmitters in the 470 MHz communication band.

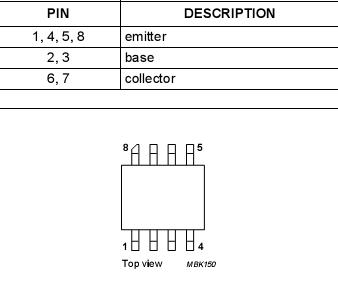

Pinout

  Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 20 V
VCES collector-emitter voltage open base  10 V
VEBO emitter-base voltage open collector 3 V
IC peak collector current 2.5 A
Ptot total power dissipation Tmb 60  13 W
Tstg storage temperature -65 +150
Tj operating junction temperature 200



Description

NPN silicon planar epitaxial power transistor BLT52 encapsulated in a ceramic SOT409A SMD package.
