BLS3135-50

Features: * Suitable for short and medium pulse applications* Internalinputandoutputmatchingnetworksforaneasy circuit design* Emitter ballasting resistors improve ruggedness* Gold metallization ensures excellent reliability* Interdigitated emitter-base structure provides high emitter efficiency* M...

product image

BLS3135-50 Picture
See larger image
SeekIC No. : 004300648 Detail

BLS3135-50: Features: * Suitable for short and medium pulse applications* Internalinputandoutputmatchingnetworksforaneasy circuit design* Emitter ballasting resistors improve ruggedness* Gold metallization ensu...

BLS3135-50 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BLS3135-50
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Suitable for short and medium pulse applications
* Internalinputandoutputmatchingnetworksforaneasy circuit design
* Emitter ballasting resistors improve ruggedness
* Gold metallization ensures excellent reliability
* Interdigitated emitter-base structure provides high emitter efficiency
* Multicellgeometryimprovespowersharingandreduces thermal resistance.


Application

* Commonbaseclass-Cpulsedpoweramplifiersforradar applications in the 3.1 to 3.5 GHz band.


Pinout

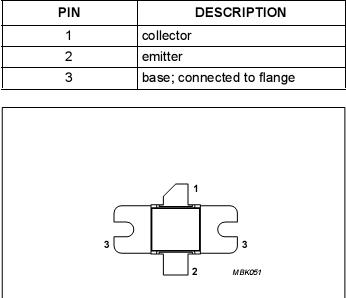

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 75 V
VCES collector-emitter voltage RBE = 0  75 V
VEBO emitter-base voltage open collector 2 V
ICM peak collector current tp  100 us; 10% 6 A
Ptot total power dissipation tp = 100 us;   = 10%; Tmb = 25  80 W
Tstg storage temperature -65 200
Tj operating junction temperature 200
Tsld soldering temperature up to 0.2 mm from ceramic cap; t 10 s 235



Description

NPNsili conplan are pitaxial microwave power transistorin BLS3135-50 is a 2-lead rectangular flange package with a ceramic cap (SOT422A) with the common base connected to the flange.
