Product Details

Description

Features:

* High power gain
* Easy power control
* Gold metallization
* Good thermal stability
* Withstands full load mismatch
* Designed for broadband operation.

Application

* Communication transmitters in the VHF/UHF range with a nominal supply voltage of 12.5 V.

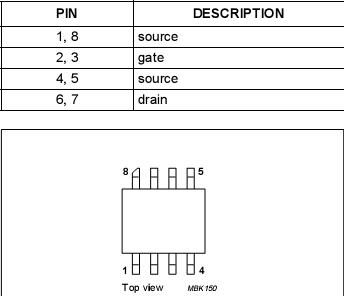

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VDS	drain-source voltage			40	V
VGS	gate-source voltage			±20	V
ID	DC drain current			1.5	A
Ptot	total power dissipation	Tmb 85 °C		8.3	W
Tstg	storage temperature		-65	150	C
Tj	junction temperature			200	C

Description

Silicon N-channel enhancement mode vertical D-MOS power transistor BLF404 in an 8-lead SOT409A SMD package with a ceramic cap.
