Product Details

Description

Features:

* 3.5 V nominal supply voltage
* 35 dBm output power
* Easy output power control by DC voltage.

Application

* DigitalcellularradiosystemswithTimeDivisionMultiple Access (TDMA) operation (GSM systems) in the 880 to 915 MHz frequency range.

Pinout

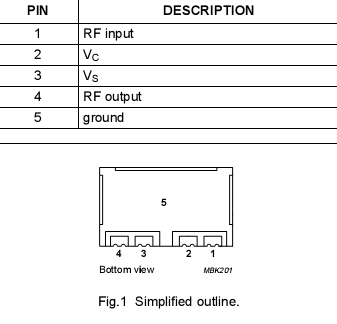

Connection Diagram

Specifications

SYMBOL	PARAMETER	MIN.	MAX.	UNIT
VS	DC supply voltage		7	V
Vc	DC supply voltage		5.5	V
PD	input drive power		2.7	mW
PL	load power		10	W
Tstg	storage temperature	-40	136	C
Tmb	operating mounting-base temperature	-30	100	C

Description

The BGY241 is a three-stage UHF amplifier module in a SOT482C leadless package with a plastic cover. The module consists of one NPN silicon planar transistor die and one bipolar monolithic integrated circuit mounted together with matching and bias circuit components on a metallized ceramic substrate.
