Product Details

Description



Features:

* 6 V nominal supply voltage
* 3.5 W pulsed output power
* Easy control of output power by DC voltage.



Application

* Digital cellular radio systems with Time Division Multiple Access (TDMA) operation (GSM systems) in the 880 to 915 MHz frequency range.

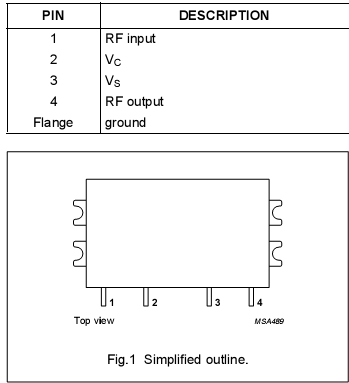

Pinout

  Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
Vs DC supply voltage 8.5 V
Vc DC supply voltage 4.5 V
PD input drive power 7 mW
PL load power 4 W
Tstg storage temperature -40 100 C
Tmb operating mounting-base temperature -30 100 C



Description

The BGY205 is a four-stage UHF amplifier module in a SOT321B package. The module consists of four NPN silicon planar transistor dies mounted together with matching and bias circuit components on a metallized ceramic substrate.
