Product Details

Description



Application

· Primarily intended for cascode output and buffer stages in high resolution colour monitors.

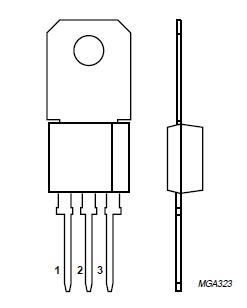

Pinout

  Connection Diagram


Specifications

SYMBOL PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VCBO collector-base voltage
open emitter
-
100
V
VCER collector-emitter voltage
RBE = 100
-
95
V
VEBO emitter-base voltage
open collector
-
3
V
IC collector current (DC)
see Fig.2
-
100
mA
IC(AV) average collector current
see Fig.2
-
100
mA
Ptot total power dissipation

Tmb 25 °C; see Fig.3

-
3.75
W
Tstg storage temperature
-65
+175
°C
Tj junction temperature
-
175
°C



Description

NPN silicon transistor BFQ225 encapsulated in a 3-lead plastic SOT128B package.
